Linear Bar Wood Vents

Horizontal Shown Flush with Frame   Vertical Shown Flush with Frame
Wood Vent Horizontal Linear Bar Wood Grille   Wood Vent Vertical Linear Bar Wood Grille

Installation options include...

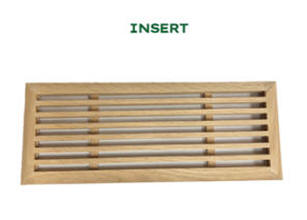

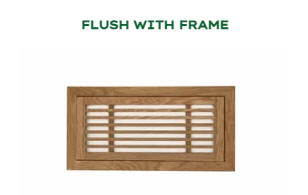

Insert Surface Mount - Floor/Wall/Ceiling Flush NO Frame - Floor/Wall/Ceiling Flush WITH Frame - Floor Only

For safety and strength, horizontal linear bar wood vents are made differently for floor or wall applications!

Horizontal Linear Bar Wood Grille Divider Example



Example of Horizontal Linear Bar Wood Vent
4 x 24" Duct Opening For Wall/Ceiling

Maximum Louver Length Between Dividers is 12".
Sections are evenly Divided

Unless specified, 1" face dividers are standard
Hidden / Recessed Dividers are available for wall and ceiling applications ONLY. See below...


Example of Horizontal Linear Bar Wood Vent
4 x 24" Duct Opening For Floor Applications

Maximum louver length between dividers is 6".
Sections are evenly Divided

1" Face dividers are standard for ALL floor vents




FLOOR APPLICATION

WALL APPLICATION

  • For All Vents with Duct Opening over 10", There is a vertical divider every 6" of duct opening (approximately, will be broken into even sections)
  • This Vertical Divider MUST COME THROUGH TO FACE OF VENT
  • Vertical Divider is 1" Wide
  • Vertical Divider is Tongue and Groove for Strength
  • Openings are 5/16" wide.  Louvers are 1/4" wide.  This may be adjusted slightly depending on duct opening size
  • For All Vents with Duct Opening over 12" Vertical dividers will be put in equal sections.  Maximum length between dividers is 12"
  • Vertical Dividers can be to face or "Hidden/Recessed"
  • Hidden Divider comes half way up the louvers.  It is 3/8" wide
  • Openings are 5/16" wide.  Louvers are 1/4" wide.  This may be adjusted slightly depending on duct size

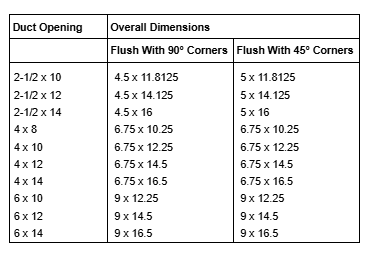

  • Overall Dimension is usually 2" greater than Duct Opening.  Note rail size and opening size may be adjusted to meet the Overall Dimension.  CALL WITH QUESTIONS OR TO REQUEST CUSTOM WORK

linear bar oak wood vent flush with frame register

flush wood wall vent linear style

flush with frame linear bar wood floor vent oak register

linear bar wood vent wall application

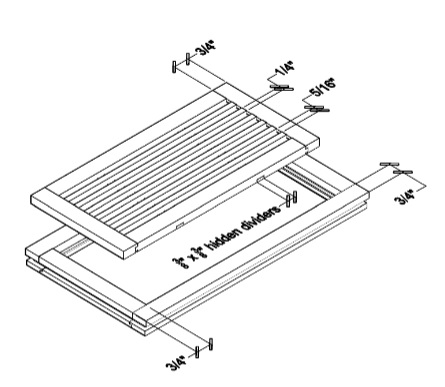

linear bar wood vent drawing spec cut sheet floor vent

wall vent oak linear bar skinny wood vent





Read about HVAC air ventilation duct cleaning

Don't see a size you are looking for call or e-mail us
